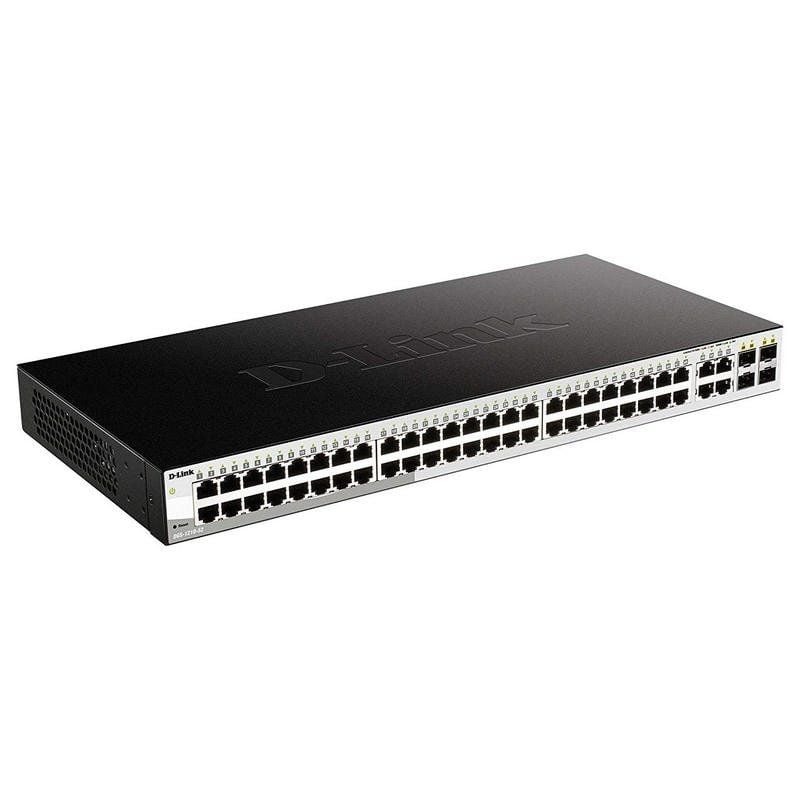

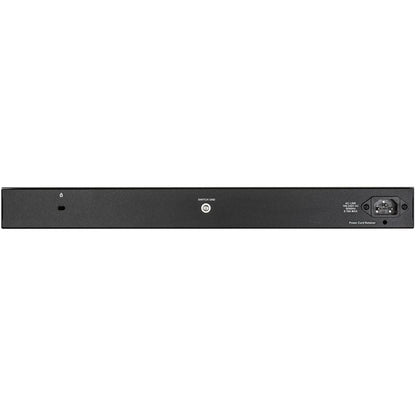

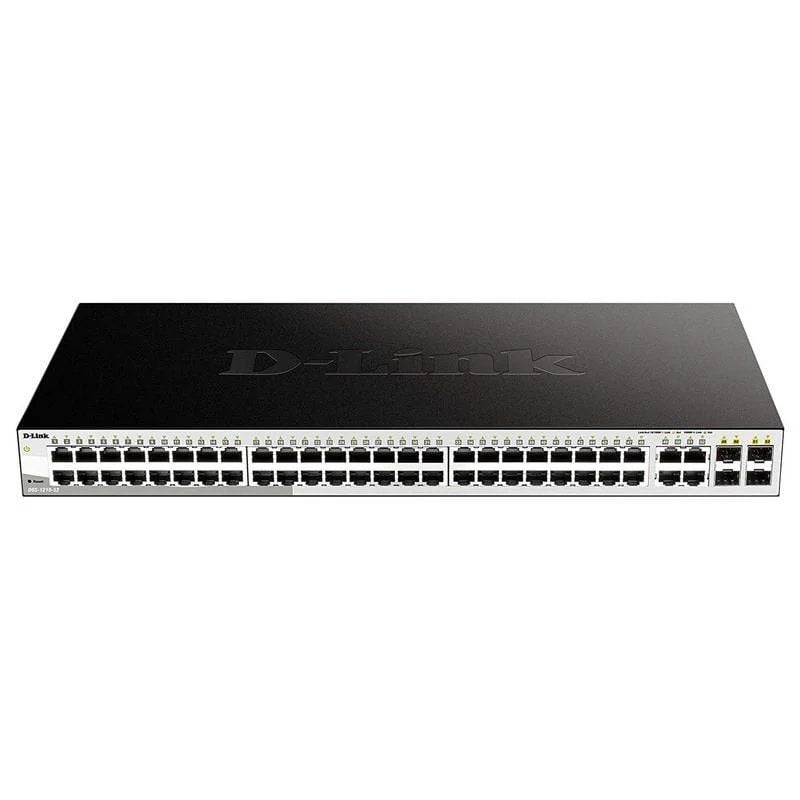

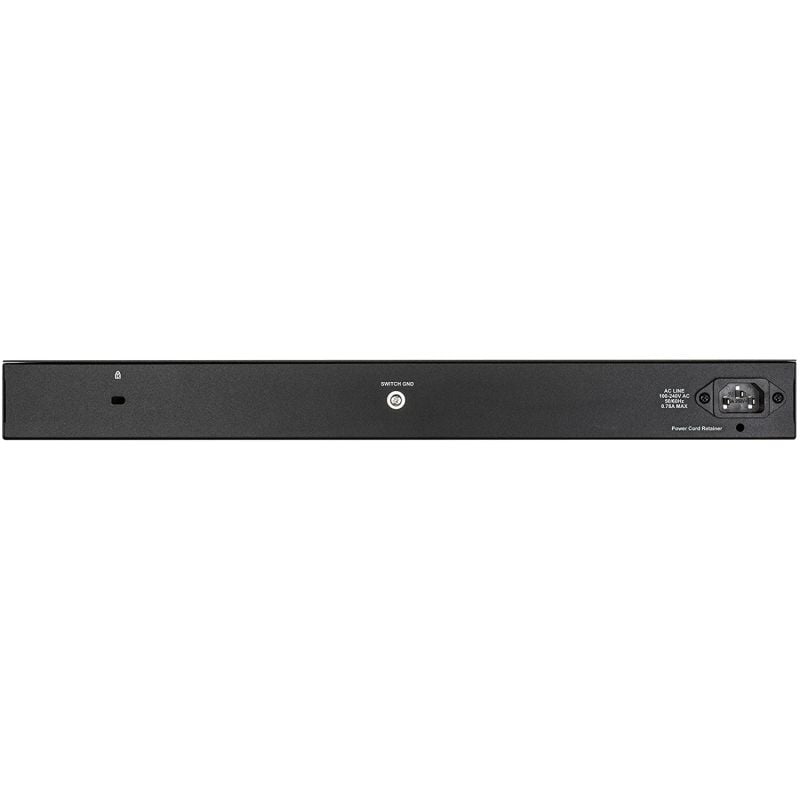

D-Link DGS-1210-52/E Switch 52xGB 4xSFP Combo

D-Link DGS-1210-52/E Switch 52xGB 4xSFP Combo
MarcaDLinkModeloDGS-1210-52/EInterfaz- 48 x Puertos 10/100/1000BASE-TX: - 4 x Puertos SFPRendimiento- Capacidad del switch: 104 Gbps
- 64-Byte Packet Forwarding Rate: 77.4 Mpps
- MAC Address Table Size: 16K
- Packet Buffer: 3 MB por dispositivo
- Jumbo Frame: hasta 9,216 BytesCaracterísticasFuncionalidades L2
- MAC Address Table: 16K entries
- IGMP Snooping:
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
- - Loopback Detection
- 802.3ad Link Aggregation:
- Maximum of 26 groups/8 ports per group
- - LLDP
- - LLDP-MED
- Jumbo Frame: Up to 9,216 bytes
- Spanning Tree Protocol: 802.1D STP
- 802.1w RSTP
- Flow Control: 802.3x Flow Control
- HOL Blocking Prevention
- Port Mirroring: One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
- Multicast Filtering:
- Forwards all unregistered groups
- Filters all unregistered groups
- Configurable MDI/MDIX:
- MLD snooping v1/v2 (256 groups)
- VLAN
- - 802.1Q
- - VLAN Group
- Max. 256 static VLAN groups
- - Configurable VID from 1 - 4094
- - Asymmetric VLAN
- - Auto Voice VLAN
- Max. 10 user-defined OUI
- Max. 8 default OUI
- - Auto Surveillance VLAN
- Calidad de servicios (QoS)
- - 802.1p Quality of Service
- - 8 queues per port
- - Queue Handling
- Strict
- Weighted Round Robin (WRR)
- - Bandwidth Control
- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
- QoS based on:
- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port
- Funcionalidades L3
- - IP Interface
- Supports 1 interface
- - IPv6 Neighbor Discovery (ND)
- Lista de conrol de acceso (ACL)
- - Max. 50 access list
- - Max. 768 rules shared by IPv4, MAC and IPv6
- - Each rule can only be associated with a single port
- - ACL based on
- 802.1p priority
- VLAN
- MAC address
- - Ether type
- - IP address
- - DSCP
- - Protocol type
- - TCP/UDP port number
- - IPv6 Traffic Class
- Seguridad
- - Broadcast/Multicast/Unicast Storm Control
- - D-Link Safeguard Engine
- - DHCP Server Screening
- - IP-MAC-Port Binding (Smart Binding)
- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping
- - 802.1X Port-based Access Control
- - ARP Spoofing Prevention
- Max. 64 entries
- - Traffic Segmentation
- - SSH v2
- - SSL
- Supports v1/v2/v3
- - Port Security
- Supports up to 64 MAC addresses per port
- - Duplicate address detection
- AAA
- - 802.1X Authentication
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
- - IPv6 RADIUS Server
- - Support MD5 authentication
- Gestión
- - Web-based GUI
- - D-Link Network Assistant Utility
- - Compact CLI
- - Telnet Server
- - TFTP Client
- - Configurable MDI/MDIX
- - SNMP
- Supports v1/v2c/v3
- - SNMP Trap
- - Backup/Upgrade firmware
- - Smart Wizard
- - Upload/Download Configuration file
- - System Log
- Max. 500 log entries
- - BootP/DHCP Client
- - SNTP
- - ICMP v6
- - IPv4/v6 Dual Stack
- - DHCP Auto Configuration
- - Time Setting
- SNTP
- - RMONv1
- Trusted HostFísicas- Consumo (Standby/Max.): 29.49W / 38.27W
- Alimentación: 10 a 240 VAC, 50/60HZ fuente de alimentación interna
- Dimensiones (An x Prof x Alt): 440 x 210 x 44 mm
- Peso: 2.58 kg
- Ventilación: Ventiladores inteligentesFecha Revisión13-06-2022 por MPM
